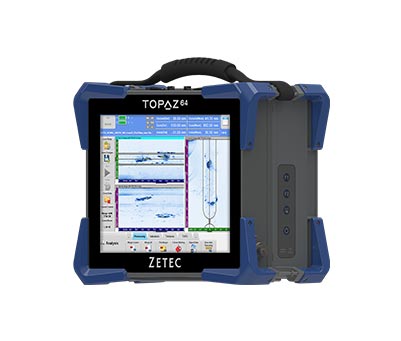

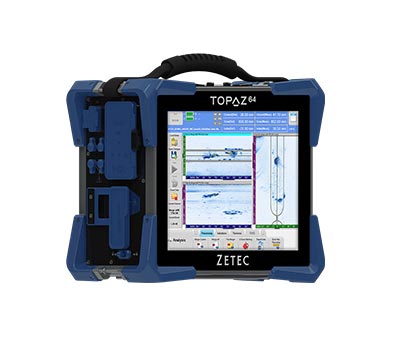

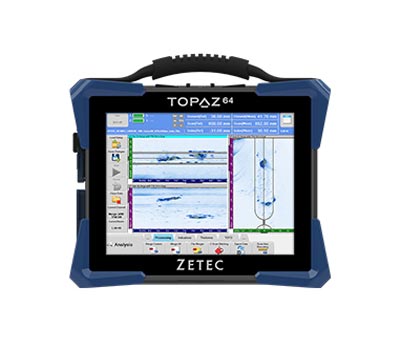

TOPAZ64: Ultra-intelligent ultrasound

Introducing TOPAZ64, a fully integrated, portable 64 channel Phased Array UT device delivering faster, more reliable inspections. It intelligently combines the power of 64 active channels for Phased Array UT applications with the industry’s most advanced Full Matrix Capture (FMC) and Total Focusing Method (TFM) capabilities.

Ideal for challenging inspections across many industries

TOPAZ64 is ideal for challenging applications in Oil & Gas, Power Generation, Manufacturing and Transportation. Whether you are inspecting complex composite materials or thick welds, TOPAZ64 delivers better coverage and accuracy.

Featuring the latest in UT including FMC and TFM

TOPAZ64 is packed with smart features to handle all UT inspections in one portable package. It features the latest technologies in ultrasound including:

  • Code Compliant 64/128PR Phased Array UT
  • High Resolution Full Matrix Capture (FMC)
  • Total Focusing Method (TFM) up to 1M Data Points per Frame
  • Time of Flight Diffraction (TOFD)

As a result, TOPAZ64 offers advanced inspection capabilities that can improve productivity in the inspection process.

Driven by industrially proven UltraVision Software

TOPAZ64 includes UltraVision Touch software onboard. This powerful, yet easy to use software controls the acquisition of Phased Array UT signals, displays real-time images and provides online and offline data analysis. UltraVision offers advanced features for TOPAZ64 designed to improve Phased Array UT inspections, including real-time high resolution TFM, and post-processed TFM from recorded elementary A-Scans. TOPAZ64 and UltraVision Software support 2D matrix arrays in pulse echo, pitch & catch or multiprobe configurations without the need for any external software.

With multiple versions available to meet your specific needs, the new TOPAZ64 is a highly intelligent portable UT instrument that can easily handle all your challenging UT inspections.


TOPAZ64 is packed with features for an inspection advantage

Since its introduction in 2013, the TOPAZ family of instruments have always defined a new standard for portable Phased Array UT features and performance. The highly intelligent TOPAZ64 continues this tradition with many features unmatched in its class.

Experience more UT power

  • TOPAZ64 offers a 64/128PR phased array UT configuration with 2 separate conventional UT channels at 200 V

Save time and money

  • Save raw A-Scan data for record-keeping compliance or TFM post-processing without the need to rescan

The latest technologies

  • Code-compliant Phased Array UT (PAUT)
  • High resolution Full Matrix Capture (FMC)
  • Total Focusing Method (TFM)
  • Time of Flight Diffraction (TOFD)

Higher resolution for better performance

  • Best-in-class “live” TFM resolution delivering 65k points per frame, up to 110 Hz
  • Can generate 1M points per frame, unmatched in the portable instrument segment
  • 12" High-resolution touchscreen that can be operated with gloves and offers best in class image quality

Improve probability of detection

  • New bipolar pulsers provide more energy to punch through thick components
  • Highest acquisition frequency in its class
  • Powerful UltraVision Software for better analysis

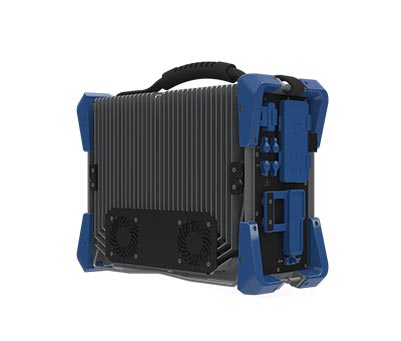

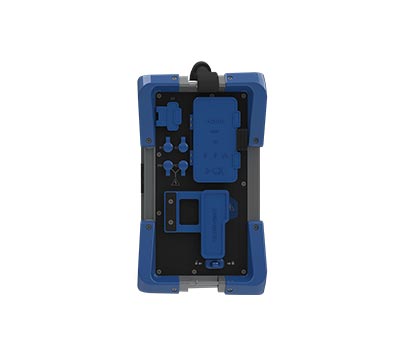

Stay connected and productive

  • USB 3.0 and 2.0 ports
  • Ethernet 1000 Base-T, Wi-Fi, High Speed Data Link
  • 256GB SSD
  • HDMI video output

Designed for demanding environments

  • Rugged, lightweight casing with no air intake preventing dust, humidity or contamination from getting inside

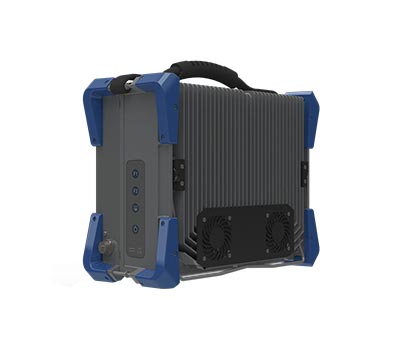

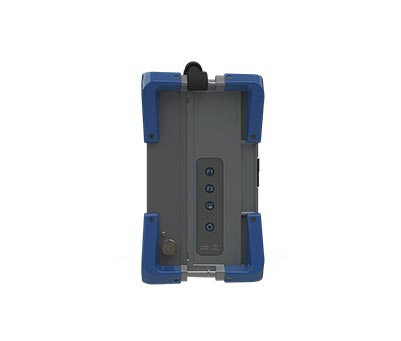

Increase uptime, wherever you go

  • Battery operated and designed to accommodate two batteries in a hot swappable sequential discharge configuration

Use less equipment and software

  • Supports 2D matrix arrays in pulse echo, pitch and catch or multiprobe configurations without the need for any external software

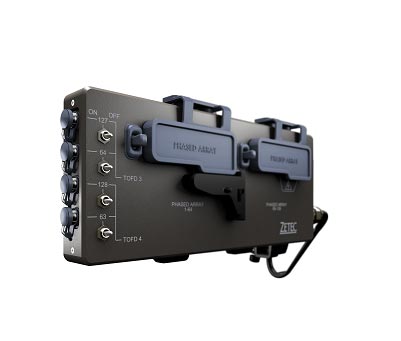

Splitter Box

Connect two PA probes at the same time for dual probe weld inspection configurations (ZPAC and Omni versions available). The Splitter Box accessory is only available for the 64/128PR version.
