Portable 16 Channel Phased Array UT Instrument

TOPAZ16 is a 16 channel fully integrated phased array UT device for non-destructive testing (NDT) projects. Optimally designed for Oil & Gas, Power Generation, Manufacturing and Transportation applications, TOPAZ16 delivers best in class productivity with unmatched value.

TOPAZ16 is our entry into more mainstream inspection markets. It is ideal for the most common applications including:

  • Weld inspections
  • Corrosion mapping
  • Encoded or manual inspections
  • Complex component inspections and more

Featuring powerful UltraVision touch software onboard, TOPAZ16 data analysis and reporting capabilities are the best in its class.

With a class leading operating temperature range and a rugged aluminum casing with no air intake, TOPAZ16 is built to meet a wide range of inspection demands regardless of the environment.

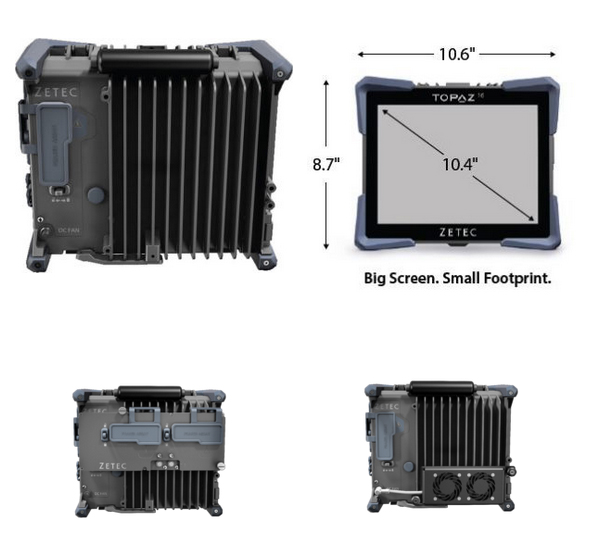

The 10.4″ high resolution display of this portable UT instrument has one of largest size ratios when compared to an instrument’s total footprint. This highly responsive touch screen offers the best resolution in its class so it is crystal clear inside and outdoors.

Touch Software embedded

Temperature Operating Range

Multi-probe Support

10.4″ High Resolution

TOPAZ16 delivers BIG VALUE in a small footprint

Fully integrated inspection process, Built to go anywhere, High signal quality, Seamless setup with scanners and probes

Why Topaz 16?

UltraVision Touch Software embedded

TOPAZ16 includes this powerful software onboard. Leverage one single software platform across the entire family of Zetec UT products saving valuable training time and enabling new levels of system synergies. Benefit from powerful features including:

  • Embedded advanced focal law calculator with visual feedback
  • Onboard volumetric merge and measurement tools
  • Interactive help onbaord the instrument
  • Remote control capabilities

Best in class temperature operating range

You can take full advantage of all the power of TOPAZ16 from -10 degrees Celsius to 45 degrees Celsius. Add the optional fan kit and TOPAZ16 delivers in environments up to 53 degrees Celsius. TOPAZ16 is built to meet your specific needs no matter how harsh the environment is.

Fully integrated inspection process

TOPAZ16 is capable of handling all steps in an inspection process helping to lower costs

  • Preparation: Specimen editor and focal law calculator helps make setups simple
  • Acquisition: TOPAZ16 has the features that deliver a highly efficient data acquisition process
  • Analysis: Full suite of basic and advanced tools are onboard for a more efficient and effective analysis
  • Reporting: TOPAZ16 is ready to print standard or custom reports in a touch

TOPAZ16 is compact and lightweight in a robust aluminum casing with no air intake. The full metallic housing improves durability and thermal transfer efficiency. Plus the unit weighs only 4.5 kg (10 lbs). Combine that with the best in class operating temperature range and 10.4″ high resolution touch display and TOPAZ16 will deliver the results you need almost anywhere, anytime.

High signal quality

With digitizing up to 800% and 16-bit amplitude resolution, TOPAZ16 provides the signal quality you need with less chance of saturation.
