Portable 32 Channel Phased Array UT Instrument

TOPAZ32 is a fully integrated, high-performance phased array UT device — a complete solution for your inspections. Optimally designed for Oil & Gas, Power Generation, Manufacturing and Transportation applications, TOPAZ32 boosts productivity, reduces job time duration and can lower total cost of ownership.

TOPAZ32 is that 2D matrix array probe support is now included without the need of any external software. This fully-integrated and simplified approach can reduce the amount of equipment needed to perform an inspection.

With its rugged construction and airtight magnesium and rubber housing, TOPAZ32 is durable enough to handle inspections in even the harshest conditions. It’s lightweight, making it portable enough to go wherever you need to carry it.

With UltraVision touch software embedded in TOPAZ32, everything you need for advanced setups and analysis is in one instrument. Visit the UltraVision Touch page to learn more about the software features.

High-performance acquisitions, high speed and fast processing. TOPAZ32 is one of the most efficient and versatile non-destructive testing (NDT) instruments in the market.

Powerful onboard analysis

Onboard Calculator

Rugged and lightweight

Compound Scanning

TOPAZ32 Fully Integrated phased UT instrument

High-performance acquisitions, high speed and fast processing. TOPAZ32 is one of the most efficient and versatile non-destructive testing (NDT) instruments in the market.

Why Topaz 32?

Optimized layouts make it easier

The advanced processing features of the TOPAZ32 onboard calibration provide optimized layouts to facilitate phased array calibration for sensitivity, wedge delay, Time Corrected Gain (TCG) and velocity for each angle.

Calibration status keeps users informed

Before acquisition begins, TOPAZ32 displays the calibration status for all channels (groups). If the relevant symbol on the display is not in green, this indicates that the related parameter has not been calibrated. Only when all symbols are green can scanning and data acquisition commence.

Data displayed in real time for quick analysis

TOPAZ32 displays data in real time, during acquisition even volumetric merged views. With a wide range of predefined, onboard layouts to present data users can create their own layout to meet specific requirements or personal preferences.

Truly revolutionary and faster in every way

  • Provides 2D matrix array probe support without the need for external software
  • Fast data acquisition due to large 2GB file size onboard. Reduces time for processing and creating reports by up to 50% versus previous versions
  • Fast and large data storage (120GB embedded solid state drive) minimizes the frequency of data export
  • Sectorial and linear scanning combine to increase the covered inspection area while reducing scanning time

Powerful onboard analysis

  • TOFD cursors allow onboard TOFD analysis
  • Lateral wave synchronization straightens the lateral TOFD wave so that defect depth measurement is extremely precise
  • Onboard layout manager provides data in a number of easily understandable formats. Users can create their own views to suit particular requirements or preferences

Display and software capabilities reduce need for post-processing

A real time, volumetric merged view is displayed onboard during acquisition so there is usually no need to post-process data on an external machine. TOPAZ32 software is based on the UltraVision core engine so there is no need to convert files between UltraVision Touch (embedded in TOPAZ32) and UltraVision. There’s no need to export files and convert for complex inspections where advanced post-processing is required.

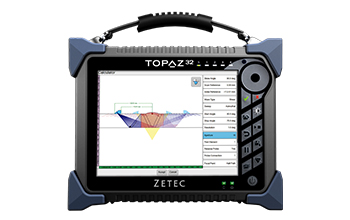

Onboard Calculator

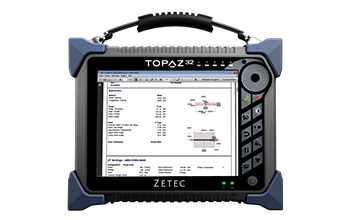

Onboard Reporting

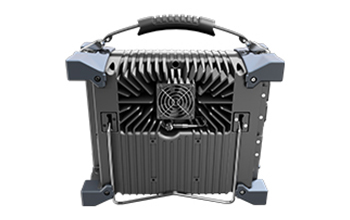

Sealed Housing

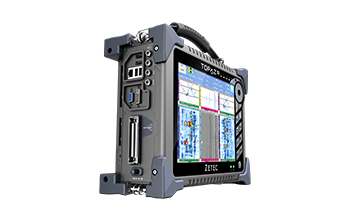

Connectivity Options
