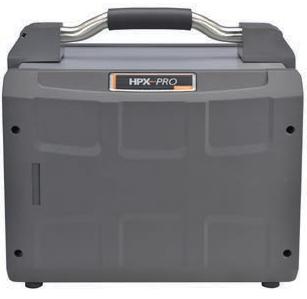

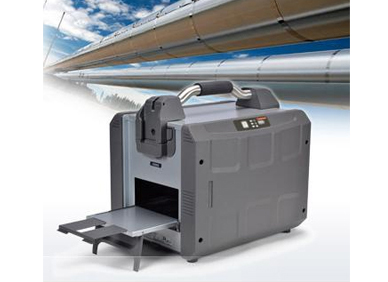

CARESTREAM INDUSTREX HPX-PRO PORTABLE DIGITAL SYSTEM

The HPX-PRO Portable CR System is designed for high throughput digital imaging in rugged NDT environments. It’s a lightweight (35lbs/16Kg), portable solution that can be set-up in less than 5 minutes and process a weld in up to a minute, producing high-quality digital images for quick analysis and rapid final reporting. HPX-PRO is a complete solution using Carestream’s INDUSTREX software to scan, display and store your all your digital data.

  • Profitable
  • Rapid Job Setup
  • Image, Analyze & Approve in Seconds
  • Customized Reporting
  • Portable

Carestream is the first NDT Company to win two Product differentiation Excellence awards within three year time from Frost & Sullivan for Computed Radiography HPX Family.


Download Brochure   BAM Certificate

Pro - Portable

Battery & Mains operated

Rapid Job setup

Customised Reporting

Carestream Industrex HPX-PRO Portable Digital System

CR for Anywhere NDT Takes You

Why HPX Pro?

Rapid Job Setup

With INDUSTREX Software setup of customer parameters, automated electronic FLASH creation on each image and automatic incremental shot numbering make getting ready to shoot fast and easy.

In Batch Mode, define shot parameters and input how many welds to shoot. Set-up the weld numbering and turn on the auto increment feature to name welds as plates process.

Image, Analyze & Approve in Seconds

Batch Mode was added to our INDUSTREX software so the HPX-PRO can keep up with film. Unlike other CR systems, the HPX-PRO scans and erases in one pass, thus eliminating wait-time for the plate to come back out during erase.

The HPX-PRO is designed to process a weld a minute (based on 5-3/4” imaging plate length). Including scanning, erasing and image display on the monitor with a pre-set EDGE filter already applied.

Customized Reporting

Make customized multi-line or single shot-style reports in a matter of seconds. When creating the work report, simply select the welds to be included and click “create report”. Generate a custom-made multi-line or single weld-style reports within seconds with pre-selected data.

PRO-Portability

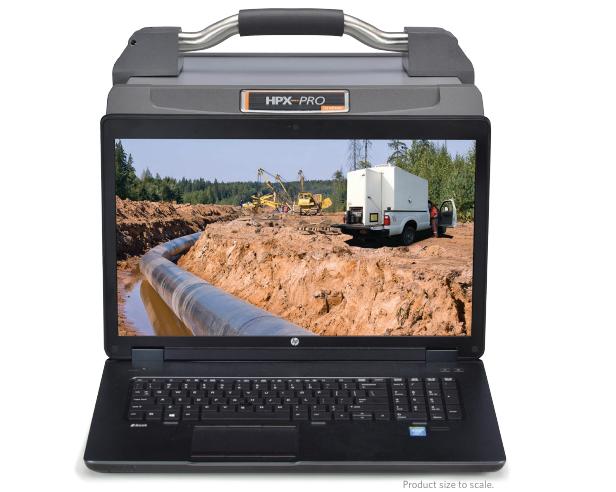

The HPX-PRO is the smallest, lightest CR system designed specifically for NDT use. With an ergonomic, padded center handle it can be carried as easily as a carry-on suitcase. Weighing in at just 35 lbs. and with a less than a 12-inch width (31cm) can be hand-held with ease.

PRO-Flexibility

Finding power in remote locations can be a challenge, but not with the HPX-PRO. It can be operated off main power (110/220v) or by using a common 24v power tool battery. Work where you need to without power limitations.

Hardware Specifications

  • Simple User Controls
  • Filter/Air Vents
  • Fold-up Feed Doors with Extensions
  • Detachable Handle
  • Battery Holders
  • Mounting Bracket
  • Ethernet and Power Connections
  • Carry Strap
