Eddynet PC software bundle is the premier software system for eddy current steam generator inspections. The release of Eddynet PC software version 1.16.6 is now available.
The bundle includes the following modules – which can be licensed and used together or separately.

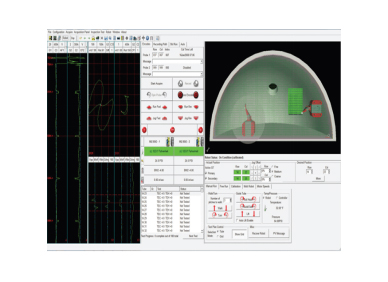

DATA ACQUISITION Eddynet/AQ has the features you need to run your eddy current instruments, probe pushers, and robotics for efficient data acquisition. It’s tightly integrated with other Eddynet PC platform products.

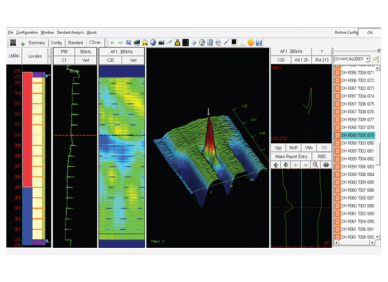

DATA ANALYSIS Eddynet/AN has all of the necessary features to analyze, review and report on any eddy current data that you acquired during your inspection.

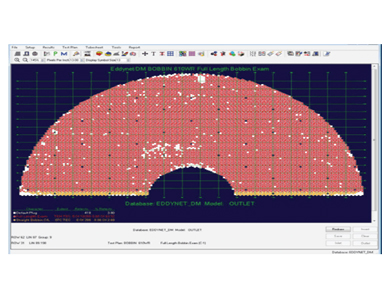

DATA MANAGEMENT Eddynet/DM gives you the management functionality necessary to execute planning, tracking, and reporting on the eddy current data that was analyzed during your inspection.
What’s New in Eddynet version 1.16.6 ?
This latest release allows a user to run multiple AN windows at a time, includes alpha-numeric encode support to the Encode Search engine, and added the ability have more than one Vessel associated with an Eddynet/AN database. The Eddynet Core no longer requires a user to re-zero phase in the MIZ-8x wizard to get a complete optimization. And DM now supports a longer Component ID and is able read it from a CSV import.
With the 1.16.0 release, Zetec has combined the installers for Eddynet and RevospECT with Velocity and RevospECT HX products. This combined installer enables a user to install the products as they need, including on the same machine. Although the products can all be safely installed on the same machine, they cannot be run at the same time. For example, a user can run Eddynet OR Velocity but not both at the same time. With the combined installer, the versions of both Eddynet and Velocity are the same.
Eddynet/AQ for Acquisition
Features of Eddynet/AQ include:
Eddynet/AN for Analysis
Features of Eddynet/AN include:
Eddynet/DM for Management
Features of Eddynet/DM include:

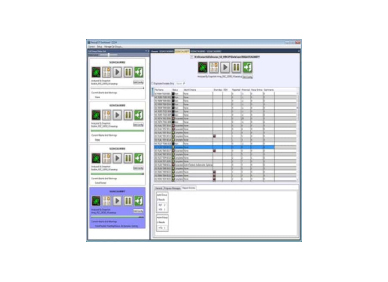

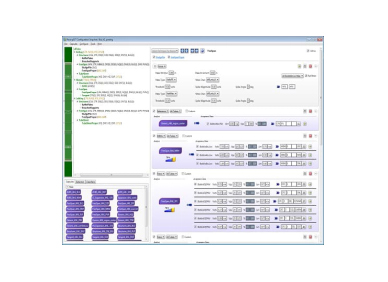

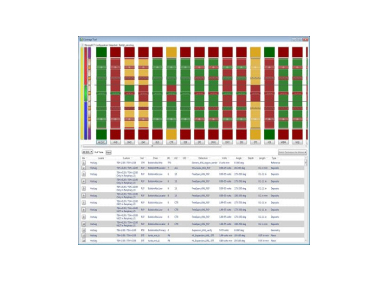

RevospECT Pro is the industry’s first commercially available high-powered, adaptable and scalable automated analysis system
It provides end users the power and control to perform comprehensive automated analysis of eddy current data. RevospECT has a proven track record in the field and meets rigorous industry standards for flaw analysis from bobbin, rotating and array inspection techniques.
Once configured for an inspection, RevospECT Pro will process and analyze data at an extremely fast rate utilizing its robust distributed processing power, often outpacing data acquisition rates and generating results that can be verified immediately by the reviewing data analyst. More importantly than system speed is the consistency of the results that are delivered using computer-aided analysis.
For inspections, RevospECT Pro can be used in a primary or secondary role, or in a single pass configuration, saving significant time and money. In addition, RevospECT Pro is the foundation for delivery of value added tools such as noise measurement monitoring and automated HDC® (Historical Data Comparison) which are processed in parallel with the core analysis for timely results. RevospECT Pro delivers the power you control.
Automated Analysis Software for Heat Exchanger Tubing Inspections
In these challenging economic times, it’s often a balancing act trying to improve heat exchanger inspection data confidence and making an efficient operation run better. Those involved in heat exchanger inspections often find themselves looking for answers to these difficult questions:
RevospECT HX Pro can help improve your component reliability and uptime. It elevates your analysis performance, all with an easy and flexible implementation.
Improve component reliability and uptime
RevospECT HX Pro delivers analysis results and reporting as you acquire data. This helps return your heat exchangers to service faster than ever. It can reduce unplanned shutdowns by easily identifying small changes that occur over the lifetime of a tube. Trends often missed in a manual process.
Elevate analysis performance with technology
As a field-proven commercially available software package, RevospECT HX Pro enables you to setup analysis parameters upfront. This helps reduce performance variability and subjectivity common in a manual process. Furthermore, repetitive and mundane tasks are eliminated through automation. So there’s less initial inspection data to review. This allows your analysts to focus on what they do best: identify signals of interest, evaluate them, and make the right decisions for your operations.
Easy, flexible and scalable
RevospECT HX Pro features a highly intuitive user interface. It’s easy to use and requires minimal training for you to get started. It can be implemented with little or no changes to your current procedures. Plus it works with most existing setups.
Experience endless deployment options, faster analysis and the ability to easily re-evaluate data anytime. RevospECT HX Pro automated analysis software offers flexibility and power in a simple to use package.

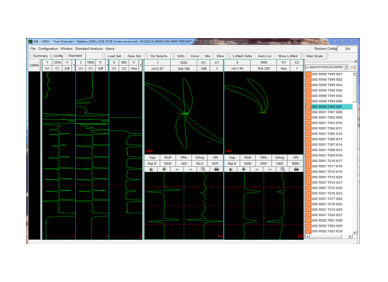

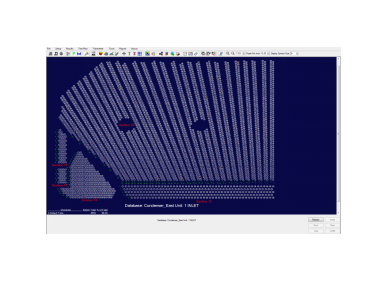

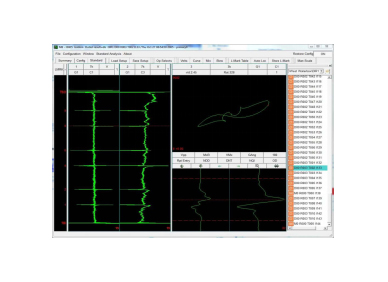

Velocity PC Software is the most efficient tool you can use for data acquisition, analysis and management. It has been customized for the balance-of-plant (BOP) and heat exchanger (HX) markets. It’s easy to use, offering you improved analysis data filtering capabilities. The release of Velocity software version 1.16.6 is now available.
Velocity operates via three modules for each activity – Velocity/AQ for data acquisition, Velocity/AN for data analysis, and Velocity/DM for data management. Each module has been perfected with the support of decades of experience in the BOP and steam generator eddy current inspections.
The Ultimate Surface Array Solution
When Velocity software is used along with the Zetec MIZ®-200 Eddy Current Array Instrument plus the Surface Array Flex Probe, it’s a complete solution engineered to work better together. Zetec delivers the highest performance, most dependable and fastest surface inspection solution in the market.
The Optimal BOP Tubing Array Solution

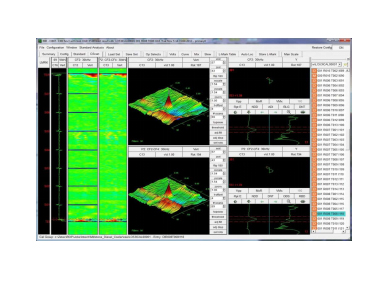

Velocity software combined with the Zetec CXB4 probe provides axial and circumferential c-scan/waterfalls. Each display has optimized the analysis process by providing the user the ability to differentiate between axial and circumferentially oriented indications. This technology is unique in the industry and delivers a simplified approach to determining the orientation of indications.

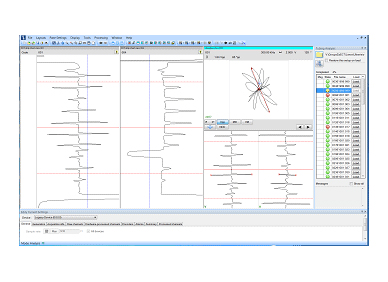

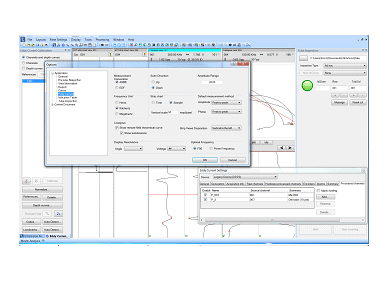

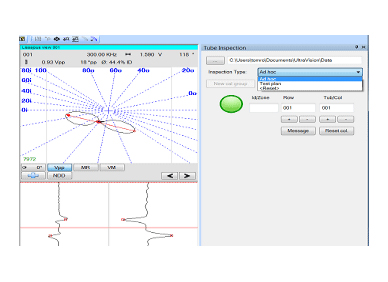

UltraVision ET leverages the simplicity of the industry proven UltraVision software interface for ultrasound and applies it to the eddy current heat exchanger (HX) tubing and surface inspection process. It is also designed to deliver an easy platform transition and a better user experience for former Multiview users.
Users will enjoy easy job set-up and technique configuration for faster inspections. The intuitive user workflow enables the user to easily step through a Bobbin, RFT, or MFL for heat exchanger tubing and a range of array, standard and customized applications dedicated to surface inspections. UltraVision ET provides a powerful platform for eddy current data acquisition, analysis, and reporting in one simple, easy-to-use application.
Powerful Eddy Current Solution For Heat Exchanger Tubing Inspections
When Ultravision ET software is used with the Zetec MIZ-200 Eddy Current instrument and bobbin probes, it creates a powerful solution for the BOP and oil & gas markets. Zetec delivers some of the highest performance, most dependable and fastest heat exchanger inspection solutions in these industries.

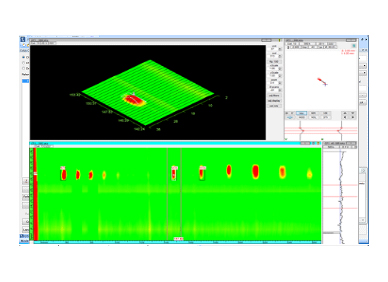

Powerful Eddy Current Array Solution For Surface Inspections
UltraVision ET is the only software in these industries which supports conventional pencil and Surf-X array probes for surface applications from a handheld MIZ-21C instrument for data readback and accurate post data analysis. It also supports the MIZ-200 instrument for standard and customized surface array inspection solutions, as well as conventional tubing inspections.
Powerful Reporting Capabilities For Tubing And Surface Inspections
UltraVision ET provides a powerful reporting user experience with its own reporting capabilities and with support for complementary, well-known reporting software programs such as CARTO, used mainly for tubing applications.
